5 pounds, 50 watts, All Tube Guitar Amplifier
GAGA-50
A new kind of guitar amplifier.
Literally pinky-weight, robust, packed with features.
Provides an uncommonly pure tonal foundation for any sound.
Solves long-standing problems, transcends limitations, maximizes musicality.
|
Cleaner cleans, dirtier dirties.™
"Every time I plug into GAGA I'm smiling."
"...feels like it's not there. It's just me, louder."
"...all I can say is WOW, that's a lot of features for five pounds of amp." »
|
|

|
Coming soon. Accepting orders in June.
Visit us during the Summer NAMM show in Nashville, TN.
1-paragraph summary -- A new kind of guitar amplifier, the patented 5-pound, all-tube GAGA-50 provides 85 watts of power at full distortion,
can be losslessly stepped down to provide 1 watt or less at full distortion,
accepts any number and type or combination of output tubes,
amplifies purely and sustains faithfully,
overloads gracefully to thoroughly yet recovers instantly without hangover,
always responds quickly and impactfully,
sports minimalist signal design for maximum purity,
runs on power mains anywhere in the world,
properly operates tubes to maximize life and tonality,
drives speakers or cabinets via a single output jack that also sustains dead shorts or total opens,
sounds great and plays well with all instruments and pedals,
provides 9-volt P3 Phantom Power for Pedals,
and is American made with pride and excellence. "GAGA-50 is the amp you'll keep."
-
5 pounds total weight
-
50 watts clean output power
-
85 watts full power and distortion
-
100% all tube power amplification
-
Extremely dynamic, agile response
-
Greatly extended tube lifetimes
-
Output tube Power-Step™ adjustment
-
Super-Infra-Sonic™ Bandwidth
-
Advanced power supplies
-
9-volt P3 Phantom Power for Pedals
|
|
-
Use-Any-Tube™
-
Auto-Everything™
-
Auto-Bias
-
Auto-Standby™
-
World-Power-Ready™
-
Drive-Anything™
-
Blow-Proof™
-
Superior ingredients, beyond "mil-spec"
-
Proper design, experienced designers
|
Pinky-Weight Power Jason pinky-lifts the 5-pound, 50-watt, all-tube GAGA-50 guitar amplifier, while Ricky Parish (Blues Gypsys) plays his '62 Fender Strat through the uncommonly uncluttered P3 pedalboard (i.e., no batteries, no power cables, 9-volt phantom power), into GAGA-50, and out to a 12-inch, Vintage-30 speaker mounted in the Fuchs cabinet.
"GAGA is fantastic. It reacts to what you put in -- totally dynamic. I can totally dig in and then go right to mellow. This is how rock is supposed to sound, smooth as glass, flowing like water, rich like cognac... I love how the tonal color changes so much and so easily, just by how I play... It's every guitarist's dream to have one knob, the guitar's volume knob, that controls the sound, and not be monkeying around back at the amp. This amp does that. I set it up to where I want to be, my general sweet spot, and then do everything --distortion, purity, whatever-- right from the guitar. The amp, it almost feels like it's not there. It's just me, louder." --Ricky Parish (Blues Gypsys)
Kamran pinky-lifts the 5-pound, 50-watt, all-tube GAGA-50 guitar amplifier, NAMM, July 2009
|
Detailed Features & Advantages of GAGA-50
-
5 pounds total weight
-
50 watts clean output power & 85 watts full power and distortion.
-
All tube power amplification - all analog, not "hybrid" or class D or "digital" anything.
- Auto-Everything™
- Play-Any-Tube™ - Mix and match any combination of common "octal" output tubes for tone and power. Escape from "matched pairs" or even matched types and choose your own voicing and tonality with whatever tubes you have or prefer (i.e., any "octal" output tube, pentode or beam tetrode, having RETMA standard 7AC style base and pinout).
-
6L6,
KT66,
EL37,
5881,
7581,
6P1P-EV,
6P3S-E,
6P6S
-
EL34,
KT77,
6CA7
-
6550,
KT88
-
6V6,
6EY6,
6EZ5,
6P6S,
6AY5,
587,
5871,
7184,
7408,
7EY6
- Auto-Bias - Never worry or adjust bias again. GAGA-50 automatically biases any combination of output tubes for full performance.
- Auto-Standby™ - No "standby" switch as GAGA-50 automatically keeps its output tubes ready to deliver full power and performance instantly, seamlessly, reliably.
- World-Power-Ready™ - Plug in anywhere on Earth. Standards compliance 90-240VAC @ 50/60Hz, RoHS, CE.
- Drive-Anything™ - Nothing to set, match, mismatch, or confuse: Single 1/4-inch output jack drives any reasonable combination of speakers or cabinets.
- Blow-Proof™ - Sustains dead-shorts or no-load total-opens without self-destructing, including the taboo of using instrument cables in place of speaker wires. No more fear or blown output transformers as with typical tube amps.
- Power-Step™ - Allows volume to be losslessly turned down to bedroom level while keeping output tube distortion, overload, response, feel and tone the same.
- Extremely Agile and Resilient Response - Upon overload, the sound "does not collapse and fold back over on itself." Tone remains powerful, play remains agile, response remains constant. Per-note speed and accuracy never bogs in overload and always amplifies precisely. "This amp is fast." Instantaneous recovery allows players to variably evoke as much overload distortion as desired on a per-note basis without any hangover. R. G. Keen may have highlighted an universal truth in writing: "What makes for a good opamp versus a bad one? ... The ones that sound good seem to all make a point that they recover from overdrive gracefully." [»]
- Super-Infra-Sonic™ - Phase-accurate, impactful, full-bodied tone with harshless alacrity: Flat frequency response across entire spectrum at full power, heretofore unattainable in tube amplifiers. "This is a tube amp like you've never heard a tube amp, doing things that shouldn't be possible..."
-
Extended Tube Lifetimes - Years to a decade or longer of useful, working life (expected) with reduced stress and insensitivity to microphonics and aging. GAGA-50 can sometimes also use tubes that have been "worn out" by and will not work satisfactorily in other amps.
- P3 Phantom Powered Pedal System® - Provides up to 3 amperes of regulated 9-volt DC to remotely power guitar pedals and/or pedalboard breakout boxes. P3 is available on the INPUT jack and also on the SEND jack. P3 is switched independently on both jacks. A front panel pilot lamp indicates 9-volt P3 power is switched on and is supplied at one or both jacks.
- Advanced power supplies recharge and regulate all internal supplies hundreds of thousands of times per second, far surpassing traditional power supplies which operate at 60 times per second. Notes carry impact and overloads stay overloaded.
- Proper design - Nothing about GAGA-50 harkens from the past except only the most desirable qualities of vacuum tube amplification, particularly all the beneficial tonal and response characteristics.
- Quality parts - 'above mil-spec' circuit boards, chassis-mountable power tube sockets, smooth potentiometers, and point-to-point wiring where appropriate. Not constrained to a target price, no corners cut or shortcuts taken. GAGA-50 is sturdy and stands alone (Marshall 20-watt head footprint), or mounts in 4U rackspace, or installs into standard cabinets.
- American made by experienced designers and manufacturers whose products have received glowing reviews over decades of time. The BaM tube car amp has been in continuous production for nearly 25 years, demonstrating commitment and pride in design and craftsmanship. GAGA-50 will be no less.
-
Available 2010. Pricing ~$2k.
Notes and Quotes from NAMM, Jan 2010
"Wow" was the most common reaction to GAGA-50.
"Just played your GAGA50 at NAMM today. WOW!!! what an amp. What a GREAT sound. Please let me know when it's ready for sale. I want one. ...No bull, I was REALLY impressed. I love people that think outside of the normal box." --Perry Robertson, Guitarist, Supervising Sound Editor and co-owner of Ear Candy Post ("UP IN THE AIR", "JUNO", "HALLOWEEN", "RAMBO")
"That amp sounds great. Perfect. Perfect studio amp. You don't even need distortion pedals anymore." --Ryan Curtis, Denmar Guitars
"This is the way it ought to be done." --Kirkwood Rough, Upstairs Amps
"Nice. Very nice." --Frank Gambale
"What a beautiful sound. Punchy and full and really clear. It doesn't muddy up at all, the high-end doesn't crash and fold over. It stays clean and smooth when pushed hard." --Seth Carlson, SRC Amplifiers
"[WTF] is going on in Maryland, man!? P3 Technology and now P3 pedals, GAGA, Power Chain -- all this new stuff -- what, did the aliens land?" --Don, guitarist
"Tonally great, there's so much color. I don't want to push it and blow the speaker, but it already sounds like there's more there, and deeper, than I get with my [ported 15-inch] bass rig." --Chuck, bassist playing GAGA through single 12-inch Vintage-30 in open-back cabinet.
"Nice smooth compression. This is thirty-thousand dollar sound." --Nate Flom
"Great tone....warm with full body..."
|
|
|
"The older and fatter I get, the less I need my gear to weigh. The sound is great, by the way. You can tell that because when people come up and play it, they keep on playing it without fiddling around or tweaking with the controls - and that's because they get great tone right away." --Brian Smith, bassist
"I get so many different sounds out of this little amp, I could play it for hours." --Dave Koval
Interview regarding GAGA-50 on sonicstate.com: "...GAGA 50 is a super lightweight (5 lbs) all tube amp which allows you to swap and interchange the tubes to get the sound that you desire. An interesting concept, it has no [audio output transformer] which means two things - it's lighter and [gives] a much more characterful tone." Change tubes in GAGA and everything changes, the entire sound. GAGA accepts any standard octal output tube to give maximum variety, color and tone. Play four different output tubes, or three of the same or any combination, or a 6550 versus a 6V6, or whatever. Forget about "matched pairs" or even matching types. Plug in what you want to get the sound you desire immediately.
Notes and Quotes from NAMM, July, 2009:
"Wow" is a common reaction to GAGA-50.
"...your amp is amazing -- it totally wins my 'best new innovation' award." »
"Half of the music industry here is in an uproar to find out what this GAGA-50 amp is all about...the other half may be asleep." --Chris Lewis
"...just when you've seen everyone doing the same things in different ways, then you see something like this..." --Richard Goodsell, Goodsell Amplifiers, 18 July 2009, Nashville Summer NAMM
"It is nice to see somebody still thinking." --Craig Anderton, harmony-central.com, 18 July 2009, Nashville Summer NAMM
"The clean is very clean. Nice how it slides in and out of overload depending on how hard I push it." --Brian Meader, WMC
» "And don't forget the part about being able to lift it with your pinky! I didn't believe it was possible until I tried it myself!"
Video interview about GAGA-50, from Nashville NAMM 2009 Scroll down the right side of the flash video player, and see also the interview with Jason about the P3 phantom power pedal system.

Pure and intuitive - GAGA-50 chassis front concept: An input jack, power switch and four knobs. Red switch toggles 9volt P3 Phantom Power for pedals. Chassis is 1/8-inch 5052 aluminum alloy mated with 1/4-inch stainless steel hardware -- rugged and overbuilt to last. Easily removable top cover secures with four thumbscrews. 17 inches by 6 inches by 6 inches tall (plus 1-inch tall handle) chassis footprints a Marshall 20 watt head or fits into 4U rackspace.

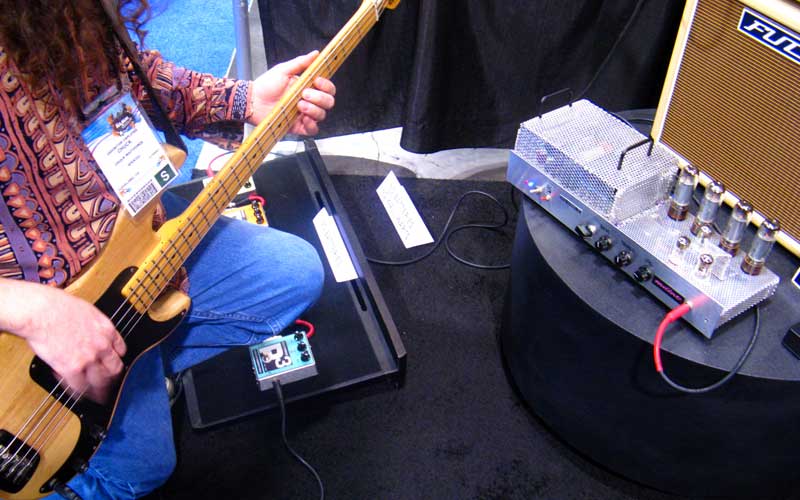

Bass on GAGA GAGA-50 can play flat to down below human hearing. Its sound "doesn't collapse and fold back over on itself." GAGA-50 also performs well as a keyboard, vocal or other instrument amplifier and would be at ease among the finest components and performers.
"Tonally great, there's so much color. I don't want to push it and blow the speaker, but it already sounds like there's more there, and deeper, than I get with my [ported 15-inch] bass rig." --Chuck, bassist playing GAGA-50 into single 12-inch Vintage-30 mounted in open-back cabinet.
"The bass was tight, far more so than I have ever heard on any tube amplifier. Acoustic bass was woody, resonant, and full of life. The extra harmonic richness in electric bass came through in spades...the bass never became tubby or boomy. .. The sound never became confused... This amplifier was absolutely unperturbed at even the highest volume." --Charles Hansen (Glass Audio Magazine, vol. 12, issue 1-2 / 2000) commending David Berning's ZH-270, a 70 watt audio amplifier that uses ZOTL Technology™.

Advanced power supplies in GAGA-50 plug in to mains anywhere on the planet and recharge and regulate all internal supplies hundreds of thousands of times per second, far surpassing traditional designs that operate at 60 times per second. "Each note sounds full bodied and stays that way. Sustain sustains and overload remains rich without collapse. GAGA-50 faithfully amplifies your sound."

"Every time I plug into GAGA I'm smiling" Jason with a Fender guitar, the pinky-weight Milbert GAGA-50, a Vintage 12" in a Fuchs cabinet, and an uncommonly uncluttered pedalboard with P3's new line of phantom powered pedals.

Uncommonly Uncluttered Pedalboard Here's that uncommonly uncluttered pedalboard showing P3's new line of phantom powered pedals. From the left: Analog Delay, Reverb, Chorus, Distortion, Overdrive -- all pedals have P3 phantom power factory installed and may be driven by any P3 powered amplifier (currently offered as an option in any Fuchs head and as a standard feature in the upcoming Milbert GAGA-50) or by the stand-alone P3 Power Station (part of the P3 External Kit). Signal flows from the Right to the Left, while Phantom Power flows from the Left to the Right through the same cable.

Uncommonly Uncluttered Jason demonstrates a nearly cable-free pedalboard that uses P3 Technology. The world's first amplifier to offer P3 as a standard feature, Milbert GAGA-50 (not shown) is supplying 9-volt phantom power to all pedals. Note the nearest pedal (overdrive, foam green color) is set to disable P3-THRU, but it could be easily set to provide 9-volts to the guitar, powering, for example, a pickup-preamp mounted inside the guitar body.

Use Any Tube GAGA-50 accepts any number, type or combination of octal output tubes and automatically biases them, giving unprecedented tonal variety while also maximizing the sonic impact of each tube. Patented technology in GAGA lets the tubes run cool enough, reducing microphonics and dramatically increasing tube life.

Effortless, Rugged, Great Tone GAGA-50 Engineering Prototype played effortlessly, oblivious to output power tubes being changed or its output shorted or disconnected while playing hard. (Nashville NAMM, July, 2009, photo courtesy of Bobby D)

Quality throughout: Maximum tone, strength, reliability Rendered with half its front half perforated 5052 aircraft aluminum cover removed to reveal smooth potentiometers, high current switches and other top quality parts inside, large and easily grasped control knobs, and optional cocobolo wood faceplate. GAGA-50 is all about individuality: Customize its look, customize its sound. Sturdy cover removes readily via four thumbscrews, allowing access to power tubes. No need for bias adjustments, matched pairs or even matching tube types - GAGA-50 automatically accepts various power output tubes in thousands of audibly different combinations. With Volume, Bass, Treble and Power-Step knobs that mildly to dramatically flavor its response, output power level and distortion character, GAGA-50 provides an unprecedented and endlessly exciting palette of audio flavors that brings musicians closer to their true tone.
Preliminary information will change. Last updated 9 Mar 2010
|
| |
|
